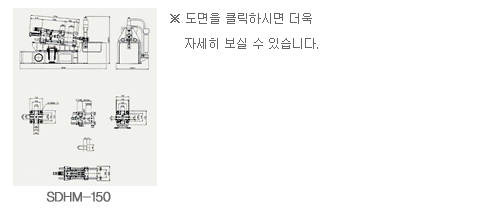

> Mg Hot Chamber > SDHM-150 |
|
|
|
| |
|
|
| |
 |
|
|
|
| |
| ±¸ºÐ |
|
SDH-150 |
| DIE LOCKING
DEP |
|
|
| LOCKING FORCE
|
TON |
150 |
| TIE BAR DIAMETER
|
mm |
85 |
| DIE
STROKE |
mm |
280 |
| SPACE BETWEEN
TIE BARS |
mm |
450X450 |
| DIE HEIGHT(MINXMAX) |
mm |
300X500 |
| INJECTION DEP
|
|
|
| INJECTION FORCE
|
TON |
9 |
| PLUNGER STROKE
|
mm |
190 |
| PLUNGER DIAMETER(S.T.D) |
mm |
50,60,70 |
| NOZZLE POSITION
|
mm |
0,-125 |
| CASTING CYCLE(DRY)PER
SEC |
sec |
10 |
| EJECTER DEP
|
|
|
| EJECTER FORCE
|
TON |
11 |
| EJECTER
STROCK |
mm |
70 |
| NOZZLE
CLAMP |
|
|
| CLAMPING
FORCE |
|
9 |
| CLAMP
STROCK |
|
220 |
| OTHER
DEP |
|
|
| OUT
PUT OF PUMP MOTER |
KW |
22.5 |
| MACHINE
DIMENSION(LXWXH) |
mm |
4,900X2,00X2,700 |
| MACHINE
WEIGHT(APPROX) |
TON |
15 |
|
|
|
|
 |
|
|
 |
|
|
